Scaffold

一个实现了基本Material Design视觉布局结构的组件

Scaffold提供了展示抽屉和底部的功能。通过Scaffold.of获取当前BuildContext的ScaffoldState，并使用ScaffoldState.showBottomSheet函数，可以展示底部抽屉，。

Scaffold布局，键盘以及刘海区域的显示

Scaffold将扩展以填充可用空间。这意味着它将占据整个窗口。当键盘出现的时候，Scaffold的祖先组件MediaQuery的MediaQueryData.viewInsets值会改变，此时Scaffold会被重建。默认情况下，Scaffold会调整大小腾出空间给键盘。如果不想Scaffold调整大小，可以将resizeToAvoidBottomInset设置为false。在任何情况下，如果有焦点组件在可滚动容器内，它将被滚动到视图中。

MediaQueryData.padding值定义了可能不会完全显示的区域，比如iphone上的刘海。通常情况下，Scaffold的body区域因为AppBar或者BottomNavigationBar可以避免碰触到这些不显示的区域，但是如果想要完全避免这种情况发生，可以使用SafeArea组件。

设置可拖动可滚动底部抽屉时同时设置悬浮按钮

如果Scaffold.bottomSheet是一个可拖动且可滚动的底部抽屉且同时设置了Scaffold.floatingActionButton。当底部抽屉拖动超过Scaffold高度的70%时，两件事将会发生：

Scaffold将会展示遮罩
Scaffold.floatingActionButton将会以Curves.easeIn动画缩小，并且将会在底部抽屉完全盖住Scaffold时完全消失

一旦拖动底部抽屉覆盖小于高度的70%，那么遮罩将会消失且Scaffold.floatingActionButton将会恢复正常大小。

例子

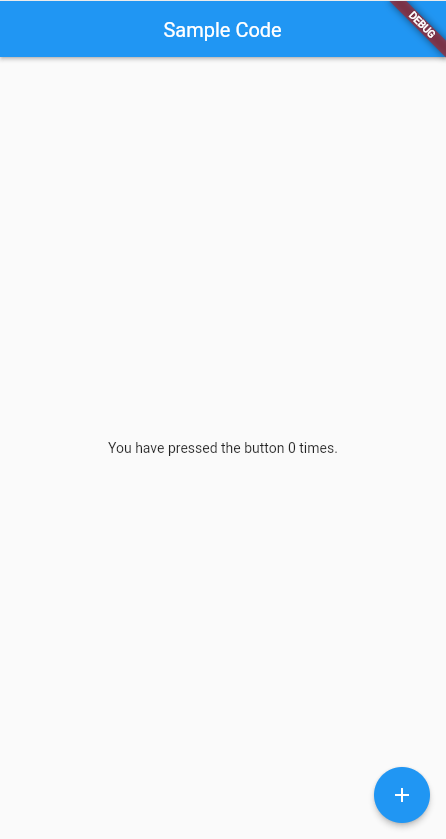

例子1

import 'package:flutter/material.dart';

/// Flutter code sample for [Scaffold].

void main() => runApp(const ScaffoldExampleApp());

class ScaffoldExampleApp extends StatelessWidget {
  const ScaffoldExampleApp({super.key});

  @override
  Widget build(BuildContext context) {
    return const MaterialApp(home: ScaffoldExample());
  }
}

class ScaffoldExample extends StatefulWidget {
  const ScaffoldExample({super.key});

  @override
  State<ScaffoldExample> createState() => _ScaffoldExampleState();
}

class _ScaffoldExampleState extends State<ScaffoldExample> {
  int _count = 0;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('Sample Code')),
      body: Center(child: Text('You have pressed the button $_count times.')),
      floatingActionButton: FloatingActionButton(
        onPressed: () => setState(() => _count++),
        tooltip: 'Increment Counter',
        child: const Icon(Icons.add),
      ),
    );
  }
}

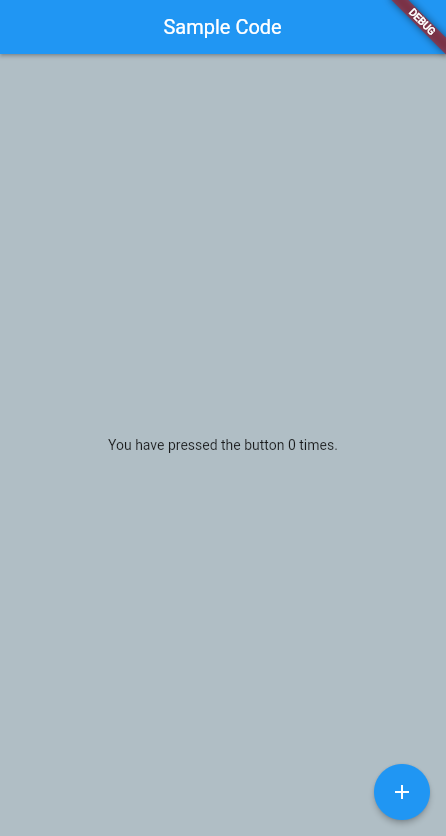

例子2

import 'package:flutter/material.dart';

/// Flutter code sample for [Scaffold].

void main() => runApp(const ScaffoldExampleApp());

class ScaffoldExampleApp extends StatelessWidget {
  const ScaffoldExampleApp({super.key});

  @override
  Widget build(BuildContext context) {
    return const MaterialApp(home: ScaffoldExample());
  }
}

class ScaffoldExample extends StatefulWidget {
  const ScaffoldExample({super.key});

  @override
  State<ScaffoldExample> createState() => _ScaffoldExampleState();
}

class _ScaffoldExampleState extends State<ScaffoldExample> {
  int _count = 0;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('Sample Code')),
      body: Center(child: Text('You have pressed the button $_count times.')),
      backgroundColor: Colors.blueGrey.shade200,
      floatingActionButton: FloatingActionButton(
        onPressed: () => setState(() => _count++),
        tooltip: 'Increment Counter',
        child: const Icon(Icons.add),
      ),
    );
  }
}

例子3

import 'package:flutter/material.dart';

/// Flutter code sample for [Scaffold].

void main() => runApp(const ScaffoldExampleApp());

class ScaffoldExampleApp extends StatelessWidget {
  const ScaffoldExampleApp({super.key});

  @override
  Widget build(BuildContext context) {
    return const MaterialApp(home: ScaffoldExample());
  }
}

class ScaffoldExample extends StatefulWidget {
  const ScaffoldExample({super.key});

  @override
  State<ScaffoldExample> createState() => _ScaffoldExampleState();
}

class _ScaffoldExampleState extends State<ScaffoldExample> {
  int _count = 0;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('Sample Code')),
      body: Center(child: Text('You have pressed the button $_count times.')),
      bottomNavigationBar: BottomAppBar(
        shape: const CircularNotchedRectangle(),
        child: Container(height: 50.0),
      ),
      floatingActionButton: FloatingActionButton(
        onPressed: () => setState(() {
          _count++;
        }),
        tooltip: 'Increment Counter',
        child: const Icon(Icons.add),
      ),
      floatingActionButtonLocation: FloatingActionButtonLocation.centerDocked,
    );
  }
}

构造函数

Scaffold.new({
  Key? key,
  PreferredSizeWidget? appBar,
  Widget? body,
  Widget? floatingActionButton,
  FloatingActionButtonLocation? floatingActionButtonLocation,
  FloatingActionButtonAnimator? floatingActionButtonAnimator,
  List<Widget>? persistentFooterButtons,
  AlignmentDirectional persistentFooterAlignment = AlignmentDirectional.centerEnd,
  BoxDecoration? persistentFooterDecoration,
  Widget? drawer,
  DrawerCallback? onDrawerChanged,
  Widget? endDrawer,
  DrawerCallback? onEndDrawerChanged,
  Widget? bottomNavigationBar,
  Widget? bottomSheet,
  Color? backgroundColor,
  bool? resizeToAvoidBottomInset,
  bool primary = true,
  DragStartBehavior drawerDragStartBehavior = DragStartBehavior.start,
  bool extendBody = false,
  bool drawerBarrierDismissible = true,
  bool extendBodyBehindAppBar = false,
  Color? drawerScrimColor,
  Widget? bottomSheetScrimBuilder(BuildContext, Animation<double>) = _defaultBottomSheetScrimBuilder,
  double? drawerEdgeDragWidth,
  bool drawerEnableOpenDragGesture = true,
  bool endDrawerEnableOpenDragGesture = true,
  String? restorationId
})

属性

属性名	类型	解释
appBar	PreferredSizeWidget?	顶部的`AppBar`
backgroundColor	Color?	`Scaffold`背景色
body	Widget?	`Scaffold`中间的主体组件
bottomNavigationBar	Widget?	`Scaffold`底部导航栏
bottomSheet	Widget?	`Scaffold`底部抽屉
bottomSheetScrimBuilder	Widget? Function(BuildContext, Animation<double>)	一个`builder`函数用于创建底部抽屉的遮罩
drawer	Widget?	从`body`侧面滑出的一个面板抽屉，默认从左往右滑出
drawerBarrierDismissible	bool	是否可以通过点击遮罩关闭抽屉
drawerDragStartBehavior	DragStartBehavior	设置何时才判定为抽屉滑动，`down`用户触摸到屏幕即开始算，`start`用户触摸到屏幕并拖动一段距离开始算
drawerEdgeDragWidth	double?	从屏幕边缘拖动多少距离打开抽屉，如果设置为0，那么将禁用从屏幕边缘滑动打开抽屉的功能
drawerEnableOpenDragGesture	bool	设置是否允许从屏幕边缘滑动打开抽屉的功能
drawerScrimColor	Color?	抽屉遮罩颜色
endDrawer	Widget?	从`body`侧面滑出的一个面板抽屉，默认从右往左滑出
endDrawerEnableOpenDragGesture	bool	同上
extendBody	bool	设置`body`内容是否延伸到底部导航栏下面，通常用于将导航栏设置为透明或者毛玻璃风格
extendBodyBehindAppBar	bool	设置`body`内容是否延伸到`AppBar`下面，通常用于将导航栏设置为透明或者毛玻璃风格
floatingActionButton	Widget?	在`body`右下角展示的一个悬浮按钮
floatingActionButtonLocation	FloatingActionButtonLocation?	设置悬浮按钮展示位置
floatingActionButtonAnimator	FloatingActionButtonAnimator?	设置悬浮按钮移动到新位置的动画
onDrawerChanged	DrawerCallback?	当`Scaffold.drawer`打开或关闭时，调用该回调函数
onEndDrawerChanged	DrawerCallback?	当`Scaffold.endDrawer`打开或关闭时，调用该回调函数
persistentFooterAlignment	AlignmentDirectional	设置底部按钮的排列方式
persistentFooterButtons	List<Widget>?	设置底部按钮
persistentFooterDecoration	BoxDecoration?	设置包含底部按钮的`Container`的装饰样式
primary	bool	设置这个`Scaffold`是否在屏幕最顶层展示
resizeToAvoidBottomInset	bool?	设置为false时，弹出键盘时，`Scaffold.body`不会调整大小来腾出空间给键盘
restorationId	String?	用于保存和恢复 Scaffold 状态的恢复 ID

静态方法

函数名	类型	解释
geometryOf	(BuildContext context) -> ValueListenable<ScaffoldGeometry>	返回给定上下文中最近的`Scaffold`祖先的`ScaffoldGeometry`的`ValueListenable`
hasDrawer	(BuildContext context, {bool registerForUpdates = true }) -> bool	返回给定上下文最近的`Scaffold`是否有抽屉
maybeOf	(BuildContext context) -> ScaffoldState?	返回给定上下文最近的`Scaffold`的`ScaffoldState`, 可能为空
of	(BuildContext context) -> ScaffoldState	返回给定上下文最近的`Scaffold`的`ScaffoldState`
