Autocomplete

一个可以进行选择的组件，并且在输入一些文本的时候可以快速筛选

用户的文本输入通过fieldViewBuilder字段接收，要显示的选项由optionsBuilder决定，并通过optionsViewBuilder渲染。

示例

例子1

import 'package:flutter/material.dart';

/// Flutter code sample for [Autocomplete].

void main() => runApp(const AutocompleteExampleApp());

class AutocompleteExampleApp extends StatelessWidget {
  const AutocompleteExampleApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        appBar: AppBar(title: const Text('Autocomplete Basic')),
        body: Center(
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: <Widget>[
              Text(
                'Type below to autocomplete the following possible results: ${AutocompleteBasicExample._kOptions}.',
              ),
              const AutocompleteBasicExample(),
            ],
          ),
        ),
      ),
    );
  }
}

class AutocompleteBasicExample extends StatelessWidget {
  const AutocompleteBasicExample({super.key});

  static const List<String> _kOptions = <String>['aardvark', 'bobcat', 'chameleon'];

  @override
  Widget build(BuildContext context) {
    return Autocomplete<String>(
      optionsBuilder: (TextEditingValue textEditingValue) {
        if (textEditingValue.text == '') {
          return const Iterable<String>.empty();
        }
        return _kOptions.where((String option) {
          return option.contains(textEditingValue.text.toLowerCase());
        });
      },
      onSelected: (String selection) {
        debugPrint('You just selected $selection');
      },
    );
  }
}

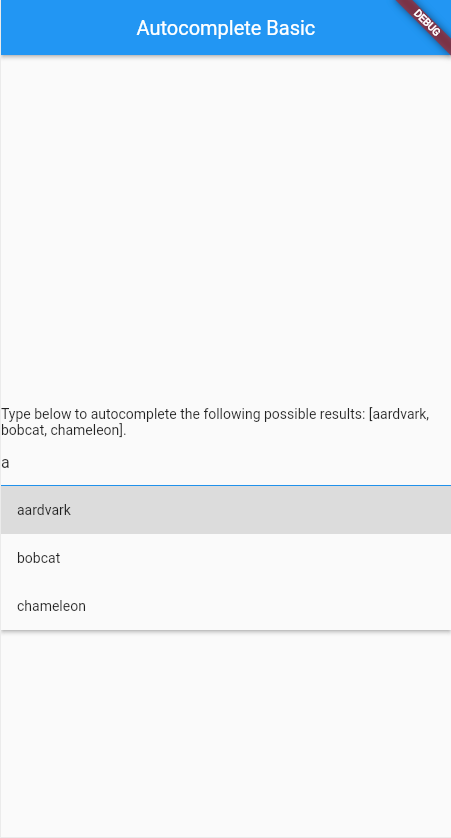

这个例子展示了如何使用默认UI创建了一个基础的Autocomplete组件。

例子2

import 'package:flutter/material.dart';

/// Flutter code sample for [Autocomplete].

void main() => runApp(const AutocompleteExampleApp());

class AutocompleteExampleApp extends StatelessWidget {
  const AutocompleteExampleApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        appBar: AppBar(title: const Text('Autocomplete Basic User')),
        body: Center(
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: <Widget>[
              Text(
                'Type below to autocomplete the following possible results: ${AutocompleteBasicUserExample._userOptions}.',
              ),
              const AutocompleteBasicUserExample(),
            ],
          ),
        ),
      ),
    );
  }
}

@immutable
class User {
  const User({required this.email, required this.name});

  final String email;
  final String name;

  @override
  String toString() {
    return '$name, $email';
  }

  @override
  bool operator ==(Object other) {
    if (other.runtimeType != runtimeType) {
      return false;
    }
    return other is User && other.name == name && other.email == email;
  }

  @override
  int get hashCode => Object.hash(email, name);
}

class AutocompleteBasicUserExample extends StatelessWidget {
  const AutocompleteBasicUserExample({super.key});

  static const List<User> _userOptions = <User>[
    User(name: 'Alice', email: 'alice@example.com'),
    User(name: 'Bob', email: 'bob@example.com'),
    User(name: 'Charlie', email: 'charlie123@gmail.com'),
  ];

  static String _displayStringForOption(User option) => option.name;

  @override
  Widget build(BuildContext context) {
    return Autocomplete<User>(
      displayStringForOption: _displayStringForOption,
      optionsBuilder: (TextEditingValue textEditingValue) {
        if (textEditingValue.text == '') {
          return const Iterable<User>.empty();
        }
        return _userOptions.where((User option) {
          return option.toString().contains(textEditingValue.text.toLowerCase());
        });
      },
      onSelected: (User selection) {
        debugPrint('You just selected ${_displayStringForOption(selection)}');
      },
    );
  }
}

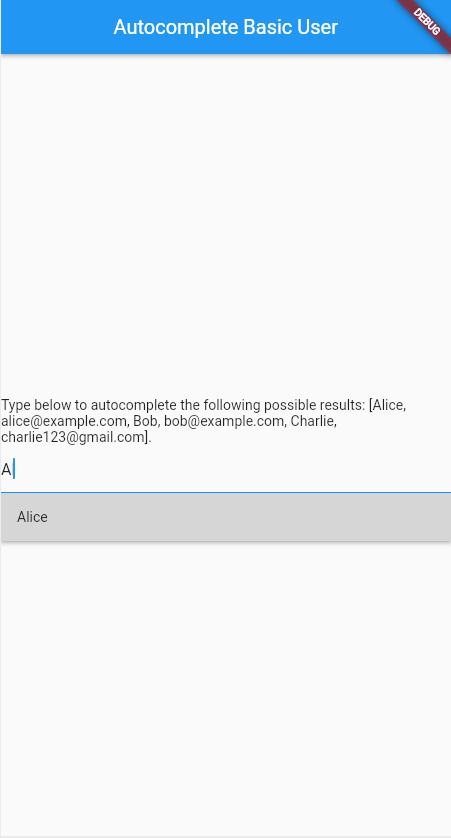

这个例子展示了如何创建一个自定义类型的Autocomplete，可以筛选搜索name或email字段。

例子3

import 'package:flutter/material.dart';

/// Flutter code sample for [Autocomplete] that shows how to fetch the options
/// from a remote API.

const Duration fakeAPIDuration = Duration(seconds: 1);

void main() => runApp(const AutocompleteExampleApp());

class AutocompleteExampleApp extends StatelessWidget {
  const AutocompleteExampleApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        appBar: AppBar(title: const Text('Autocomplete - async')),
        body: Center(
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: <Widget>[
              Text(
                'Type below to autocomplete the following possible results: ${_FakeAPI._kOptions}.',
              ),
              const _AsyncAutocomplete(),
            ],
          ),
        ),
      ),
    );
  }
}

class _AsyncAutocomplete extends StatefulWidget {
  const _AsyncAutocomplete();

  @override
  State<_AsyncAutocomplete> createState() => _AsyncAutocompleteState();
}

class _AsyncAutocompleteState extends State<_AsyncAutocomplete> {
  // The query currently being searched for. If null, there is no pending
  // request.
  String? _searchingWithQuery;

  // The most recent options received from the API.
  late Iterable<String> _lastOptions = <String>[];

  @override
  Widget build(BuildContext context) {
    return Autocomplete<String>(
      optionsBuilder: (TextEditingValue textEditingValue) async {
        _searchingWithQuery = textEditingValue.text;
        final Iterable<String> options = await _FakeAPI.search(_searchingWithQuery!);

        // If another search happened after this one, throw away these options.
        // Use the previous options instead and wait for the newer request to
        // finish.
        if (_searchingWithQuery != textEditingValue.text) {
          return _lastOptions;
        }

        _lastOptions = options;
        return options;
      },
      onSelected: (String selection) {
        debugPrint('You just selected $selection');
      },
    );
  }
}

// Mimics a remote API.
class _FakeAPI {
  static const List<String> _kOptions = <String>['aardvark', 'bobcat', 'chameleon'];

  // Searches the options, but injects a fake "network" delay.
  static Future<Iterable<String>> search(String query) async {
    await Future<void>.delayed(fakeAPIDuration); // Fake 1 second delay.
    if (query == '') {
      return const Iterable<String>.empty();
    }
    return _kOptions.where((String option) {
      return option.contains(query.toLowerCase());
    });
  }
}

这个例子展示了Autocomplete如何通过网络请求来获取筛选项。

例子4

import 'dart:async';

import 'package:flutter/material.dart';

/// Flutter code sample for [Autocomplete] that demonstrates fetching the
/// options asynchronously and debouncing the network calls.

const Duration fakeAPIDuration = Duration(seconds: 1);
const Duration debounceDuration = Duration(milliseconds: 500);

void main() => runApp(const AutocompleteExampleApp());

class AutocompleteExampleApp extends StatelessWidget {
  const AutocompleteExampleApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        appBar: AppBar(title: const Text('Autocomplete - async and debouncing')),
        body: Center(
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: <Widget>[
              Text(
                'Type below to autocomplete the following possible results: ${_FakeAPI._kOptions}.',
              ),
              const _AsyncAutocomplete(),
            ],
          ),
        ),
      ),
    );
  }
}

class _AsyncAutocomplete extends StatefulWidget {
  const _AsyncAutocomplete();

  @override
  State<_AsyncAutocomplete> createState() => _AsyncAutocompleteState();
}

class _AsyncAutocompleteState extends State<_AsyncAutocomplete> {
  // The query currently being searched for. If null, there is no pending
  // request.
  String? _currentQuery;

  // The most recent options received from the API.
  late Iterable<String> _lastOptions = <String>[];

  late final _Debounceable<Iterable<String>?, String> _debouncedSearch;

  // Calls the "remote" API to search with the given query. Returns null when
  // the call has been made obsolete.
  Future<Iterable<String>?> _search(String query) async {
    _currentQuery = query;

    // In a real application, there should be some error handling here.
    final Iterable<String> options = await _FakeAPI.search(_currentQuery!);

    // If another search happened after this one, throw away these options.
    if (_currentQuery != query) {
      return null;
    }
    _currentQuery = null;

    return options;
  }

  @override
  void initState() {
    super.initState();
    _debouncedSearch = _debounce<Iterable<String>?, String>(_search);
  }

  @override
  Widget build(BuildContext context) {
    return Autocomplete<String>(
      optionsBuilder: (TextEditingValue textEditingValue) async {
        final Iterable<String>? options = await _debouncedSearch(textEditingValue.text);
        if (options == null) {
          return _lastOptions;
        }
        _lastOptions = options;
        return options;
      },
      onSelected: (String selection) {
        debugPrint('You just selected $selection');
      },
    );
  }
}

// Mimics a remote API.
class _FakeAPI {
  static const List<String> _kOptions = <String>['aardvark', 'bobcat', 'chameleon'];

  // Searches the options, but injects a fake "network" delay.
  static Future<Iterable<String>> search(String query) async {
    await Future<void>.delayed(fakeAPIDuration); // Fake 1 second delay.
    if (query == '') {
      return const Iterable<String>.empty();
    }
    return _kOptions.where((String option) {
      return option.contains(query.toLowerCase());
    });
  }
}

typedef _Debounceable<S, T> = Future<S?> Function(T parameter);

/// Returns a new function that is a debounced version of the given function.
///
/// This means that the original function will be called only after no calls
/// have been made for the given Duration.
_Debounceable<S, T> _debounce<S, T>(_Debounceable<S?, T> function) {
  _DebounceTimer? debounceTimer;

  return (T parameter) async {
    if (debounceTimer != null && !debounceTimer!.isCompleted) {
      debounceTimer!.cancel();
    }
    debounceTimer = _DebounceTimer();
    try {
      await debounceTimer!.future;
    } on _CancelException {
      return null;
    }
    return function(parameter);
  };
}

// A wrapper around Timer used for debouncing.
class _DebounceTimer {
  _DebounceTimer() {
    _timer = Timer(debounceDuration, _onComplete);
  }

  late final Timer _timer;
  final Completer<void> _completer = Completer<void>();

  void _onComplete() {
    _completer.complete();
  }

  Future<void> get future => _completer.future;

  bool get isCompleted => _completer.isCompleted;

  void cancel() {
    _timer.cancel();
    _completer.completeError(const _CancelException());
  }
}

// An exception indicating that the timer was canceled.
class _CancelException implements Exception {
  const _CancelException();
}

这个例子展示了Autocomplete在使用网络请求获取筛选结果的时候，利用debounce来让用户在输入内容结束间隔若干时间后再发起网络请求，防止过度请求。

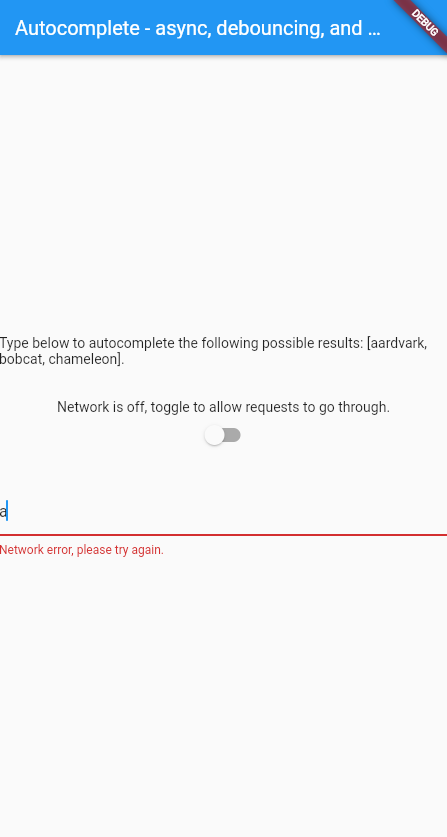

例子5

import 'dart:async';

import 'package:flutter/material.dart';

/// Flutter code sample for [Autocomplete] that demonstrates fetching the
/// options asynchronously and debouncing the network calls, including handling
/// network errors.

void main() => runApp(const AutocompleteExampleApp());

const Duration fakeAPIDuration = Duration(seconds: 1);
const Duration debounceDuration = Duration(milliseconds: 500);

class AutocompleteExampleApp extends StatelessWidget {
  const AutocompleteExampleApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        appBar: AppBar(title: const Text('Autocomplete - async, debouncing, and network errors')),
        body: Center(
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: <Widget>[
              Text(
                'Type below to autocomplete the following possible results: ${_FakeAPI._kOptions}.',
              ),
              const SizedBox(height: 32.0),
              const _AsyncAutocomplete(),
            ],
          ),
        ),
      ),
    );
  }
}

class _AsyncAutocomplete extends StatefulWidget {
  const _AsyncAutocomplete();

  @override
  State<_AsyncAutocomplete> createState() => _AsyncAutocompleteState();
}

class _AsyncAutocompleteState extends State<_AsyncAutocomplete> {
  // The query currently being searched for. If null, there is no pending
  // request.
  String? _currentQuery;

  // The most recent options received from the API.
  late Iterable<String> _lastOptions = <String>[];

  late final _Debounceable<Iterable<String>?, String> _debouncedSearch;

  // Whether to consider the fake network to be offline.
  bool _networkEnabled = true;

  // A network error was received on the most recent query.
  bool _networkError = false;

  // Calls the "remote" API to search with the given query. Returns null when
  // the call has been made obsolete.
  Future<Iterable<String>?> _search(String query) async {
    _currentQuery = query;

    late final Iterable<String> options;
    try {
      options = await _FakeAPI.search(_currentQuery!, _networkEnabled);
    } on _NetworkException {
      if (mounted) {
        setState(() {
          _networkError = true;
        });
      }
      return <String>[];
    }

    // If another search happened after this one, throw away these options.
    if (_currentQuery != query) {
      return null;
    }
    _currentQuery = null;

    return options;
  }

  @override
  void initState() {
    super.initState();
    _debouncedSearch = _debounce<Iterable<String>?, String>(_search);
  }

  @override
  Widget build(BuildContext context) {
    return Column(
      mainAxisAlignment: MainAxisAlignment.center,
      children: <Widget>[
        Text(
          _networkEnabled
              ? 'Network is on, toggle to induce network errors.'
              : 'Network is off, toggle to allow requests to go through.',
        ),
        Switch(
          value: _networkEnabled,
          onChanged: (bool? value) {
            setState(() {
              _networkEnabled = !_networkEnabled;
            });
          },
        ),
        const SizedBox(height: 32.0),
        Autocomplete<String>(
          fieldViewBuilder:
              (
                BuildContext context,
                TextEditingController controller,
                FocusNode focusNode,
                VoidCallback onFieldSubmitted,
              ) {
                return TextFormField(
                  decoration: InputDecoration(
                    errorText: _networkError ? 'Network error, please try again.' : null,
                  ),
                  controller: controller,
                  focusNode: focusNode,
                  onFieldSubmitted: (String value) {
                    onFieldSubmitted();
                  },
                );
              },
          optionsBuilder: (TextEditingValue textEditingValue) async {
            setState(() {
              _networkError = false;
            });
            final Iterable<String>? options = await _debouncedSearch(textEditingValue.text);
            if (options == null) {
              return _lastOptions;
            }
            _lastOptions = options;
            return options;
          },
          onSelected: (String selection) {
            debugPrint('You just selected $selection');
          },
        ),
      ],
    );
  }
}

// Mimics a remote API.
class _FakeAPI {
  static const List<String> _kOptions = <String>['aardvark', 'bobcat', 'chameleon'];

  // Searches the options, but injects a fake "network" delay.
  static Future<Iterable<String>> search(String query, bool networkEnabled) async {
    await Future<void>.delayed(fakeAPIDuration); // Fake 1 second delay.
    if (!networkEnabled) {
      throw const _NetworkException();
    }
    if (query == '') {
      return const Iterable<String>.empty();
    }
    return _kOptions.where((String option) {
      return option.contains(query.toLowerCase());
    });
  }
}

typedef _Debounceable<S, T> = Future<S?> Function(T parameter);

/// Returns a new function that is a debounced version of the given function.
///
/// This means that the original function will be called only after no calls
/// have been made for the given Duration.
_Debounceable<S, T> _debounce<S, T>(_Debounceable<S?, T> function) {
  _DebounceTimer? debounceTimer;

  return (T parameter) async {
    if (debounceTimer != null && !debounceTimer!.isCompleted) {
      debounceTimer!.cancel();
    }
    debounceTimer = _DebounceTimer();
    try {
      await debounceTimer!.future;
    } on _CancelException {
      return null;
    }
    return function(parameter);
  };
}

// A wrapper around Timer used for debouncing.
class _DebounceTimer {
  _DebounceTimer() {
    _timer = Timer(debounceDuration, _onComplete);
  }

  late final Timer _timer;
  final Completer<void> _completer = Completer<void>();

  void _onComplete() {
    _completer.complete();
  }

  Future<void> get future => _completer.future;

  bool get isCompleted => _completer.isCompleted;

  void cancel() {
    _timer.cancel();
    _completer.completeError(const _CancelException());
  }
}

// An exception indicating that the timer was canceled.
class _CancelException implements Exception {
  const _CancelException();
}

// An exception indicating that a network request has failed.
class _NetworkException implements Exception {
  const _NetworkException();
}

这个例子展示了如何创建一个通过网络来获取筛选项的Autocomplete组件，它包括防抖和错误处理功能，以便在用户界面展示错误信息，并且能够从中恢复。通过切换按钮来模拟网络离线。

构造函数

Autocomplete.new({
  Key? key,
  required AutocompleteOptionsBuilder<T> optionsBuilder,
  AutocompleteOptionToString<T> displayStringForOption = RawAutocomplete.defaultStringForOption,
  AutocompleteFieldViewBuilder fieldViewBuilder = _defaultFieldViewBuilder,
  FocusNode? focusNode, AutocompleteOnSelected<T>? onSelected,
  double optionsMaxHeight = 200.0,
  AutocompleteOptionsViewBuilder<T>? optionsViewBuilder,
  OptionsViewOpenDirection optionsViewOpenDirection = OptionsViewOpenDirection.down,
  TextEditingController? textEditingController,
  TextEditingValue? initialValue
})

属性

属性名属性类型说明
displayStringForOptionAutocompleteOptionToString<T>用于设置当选择某个选项后，在输入框中展示的字符串
fieldViewBuilderAutocompleteFieldViewBuilder用于设置输入框应该怎么被构建和显示，自定义输入框的外观和行为
initialValueTextEditingValue?输入框的初始值
onSelectedAutocompleteOnSelected<T>?当选择了某个选项后，会调用该回调
optionsBuilderAutocompleteOptionsBuilder<T>根据当前输入的文本，返回需要展示的候选列表
optionsMaxHeightdouble设置选项面板的最大高度，当超过高度后会自动变成可滚动的
optionsViewBuilderAutocompleteOptionsViewBuilder<T>?构建选择项的样式界面
optionsViewOpenDirectionOptionsViewOpenDirection描述Autocomplete的下拉列表应该从哪个方向展开
textEditingControllerTextEditingController?给Autocomplete使用的Controller

额外说明

  • optionsViewOpenDirection: down在输入框下方展开，up在输入框上方展开，downThenUp先尝试下方，下方空间不足时再改向上，upThenDown先尝试上方，上方空间不足时再改向下
